SW260
NO - SP - ST

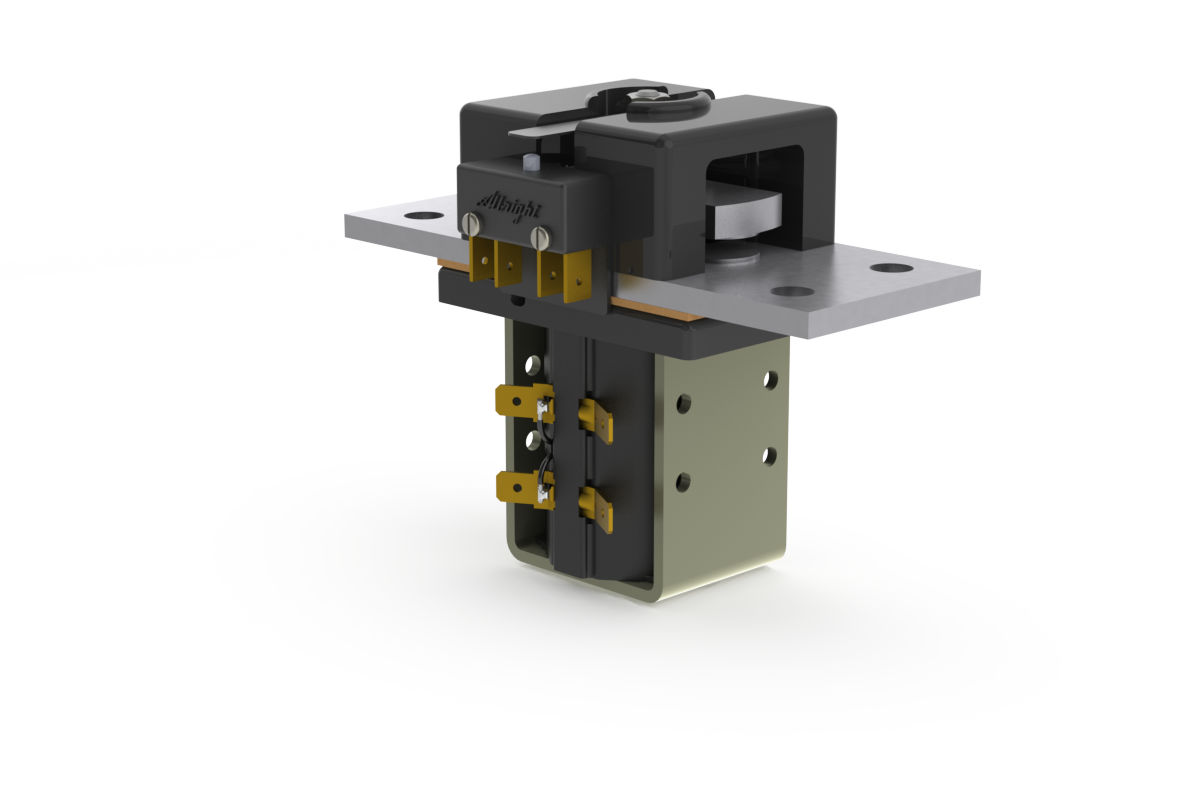

The SW260 is designed for use in telecommunication and power distribution applications where an uninterrupted load is switched. These contactors are primarily for use with Direct Current loads but can also be used with Alternating Currents.
The SW260 features double breaking main contacts with silver alloy tips which are weld resistant, hard wearing and have excellent conductivity. Silver plating on the main contacts is standard for the SW260, however, optionally it can be excluded from the specification. This compact contactor can be busbar mounted vertically or horizontally, but if mounted vertically, the coil should be at the bottom. Optional extras for the SW260 include auxiliary switches, brackets, coil finishes and magnetic latching which allows the contactor to remain closed while consuming no coil power.
Please note, although still available the SW260 has been superseded by the SW300.
SW260 Technical Information
| Application | ||
| Thermal Current Rating | - | 300A |
| Intermittent Current Rating: | ||
| 30% Duty | - | 550A |
| 40% Duty | - | 475A |
| 50% Duty | - | 425A |
| 60% Duty | - | 385A |
| 70% Duty | - | 360A |
| Rated Fault Current Breaking Capacity (Icn) 5ms Time Constant: (In accordance with UL583*) | ||
| Blowouts | - | |
| No Blowouts | - | |
| Rated Fault Current Breaking Capacity (Icn) Resistive Load: (In accordance with UL508*) | ||
| Blowouts | - | |
| No Blowouts | 450A at 60V D.C. | |
| Maximum Recommended Contact Voltages | ||
| Blowouts | - | - |
| No Blowouts | - | 60V |
| Typical Voltage Drop per pole across New Contacts at 100A | 50mV | |
| Mechanical Durability | > 1,000,000 Cycles | |
| Coil Voltage Available (Us) (Rectifier board required for A.C.) | 6 - 240V | |
SW260 Features
| Component | Configurations |
|---|---|
| Auxiliary |
STANDARD
STANDARD - GOLD
V3
V3 - GOLD
|
| Coil Suppression |
DIODE
DIODE AND RESISTOR
BI-DIRECTIONAL DIODE
|
| Coil Terminations |
AMP TAGS
FLYING LEADS
VACCUM IMPREGNATION
|
