DC64P
NO - DP - ST - IP67

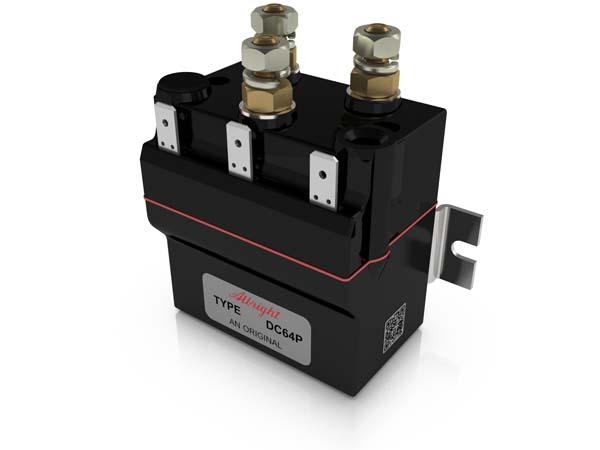

The DC64P has been designed for direct current loads, such as motors used on small winches. The DC64P is a monoblock construction, resulting in a compact design which is compatible with modern electronic control systems. Devised for both interrupted and uninterrupted loads, this contactor is suitable for switching Resistive, Capacitive and Inductive loads.
The DC64P has double breaking main contacts with silver alloy tips, which are weld resistant, hard wearing and have excellent conductivity. The ‘P type configuration offers greater environmentally protected switches, compliant to IP66. The DC64P has M6 main stud terminals and coil connections are by means of 6.3mm spades.
DC64P Technical Information
| Application | ||
| Thermal Current Rating | 80A | 80A |
| Intermittent Current Rating: | ||
| 30% Duty | 145A | 145A |
| 40% Duty | 125A | 125A |
| 50% Duty | 115A | 115A |
| 60% Duty | 105A | 105A |
| 70% Duty | 95A | 95A |
| Rated Fault Current Breaking Capacity (Icn) 5ms Time Constant: (In accordance with UL583*) | ||
| Blowouts | - | |
| No Blowouts | 500A at 60V D.C. | |
| Rated Fault Current Breaking Capacity (Icn) Resistive Load: (In accordance with UL508*) | ||
| Blowouts | - | |
| No Blowouts | 120A at 48V D.C. | |
| Maximum Recommended Contact Voltages | ||
| Blowouts | - | - |
| No Blowouts | 48V | 48V |
| Typical Voltage Drop per pole across New Contacts at 80A | 40mV | |
| Mechanical Durability | > 3,000,000 Cycles | |
| Coil Voltage Available (Us) (Rectifier board required for A.C.) | 6 - 130V | |
DC64P Features
| Component | Configurations |
|---|---|
| Coil Suppression |
DIODE
DIODE AND RESISTOR
BI-DIRECTIONAL DIODE
|
| Coil Terminations |
AMP TAGS
|
