RW190
NO - DP - ST
The Reduced Silver series are suitable for applications where infrequent switching is specified. In such applications the degradation of the tip is minimal and therefore a higher volume of silver is unnecessary.
Developed for Uninterrupted current applications the RW190 is typically used in line contactors and Power Distribution Systems.

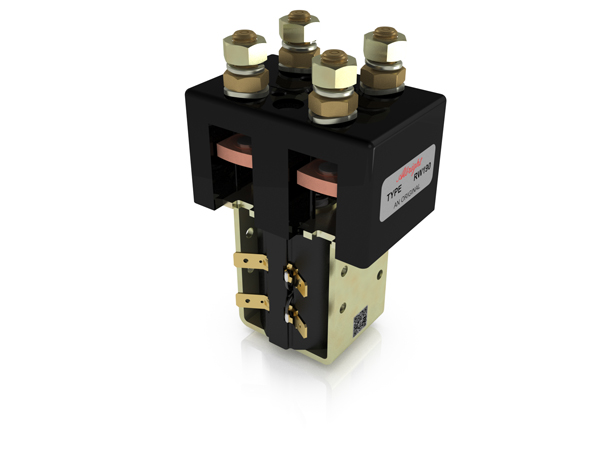

The RW190 features double breaking main contacts with silver alloy tips, which are weld resistant, hard wearing and have excellent conductivity. The RW190 has M8 stud main terminals and 6.3mm spade coil connections. It can be mounted via M5 tapped holes or mounting brackets; either supplied fitted, or as separate items. Mounting can be horizontal or vertical, when vertical the M8 contact studs should point upwards. If the requirement is for downwards orientation we can adjust the contactor to compensate for this.
RW190 Technical Information
| Application | ||
| Thermal Current Rating | - | 200A |
| Intermittent Current Rating: | ||
| 30% Duty | - | 365A |
| 40% Duty | - | 315A |
| 50% Duty | - | 285A |
| 60% Duty | - | 260A |
| 70% Duty | - | 240A |
| Rated Fault Current Breaking Capacity (Icn) 5ms Time Constant: (In accordance with UL583*) | ||
| Blowouts | - | |
| No Blowouts | - | |
| Rated Fault Current Breaking Capacity (Icn) Resistive Load: (In accordance with UL508*) | ||
| Blowouts | 300A at 120V D.C. | |
| No Blowouts | 300A at 60V D.C. | |
| Maximum Recommended Contact Voltages | ||
| Blowouts | 250V | 250V |
| No Blowouts | 96V | 96V |
| Typical Voltage Drop per pole across New Contacts at 150A | 40mV | |
| Mechanical Durability | > 5,000,000 Cycles | |
| Coil Voltage Available (Us) (Rectifier board required for A.C.) | 6 - 240V | |
RW190 Features
| Component | Configurations |
|---|---|
| Auxiliary |
STANDARD
STANDARD - GOLD
V3
V3 - GOLD
|
| Coil Suppression |
DIODE
DIODE AND RESISTOR
BI-DIRECTIONAL DIODE
|
| Coil Terminations |
AMP TAGS
FLYING LEADS
PLUG
VACCUM IMPREGNATION
|
