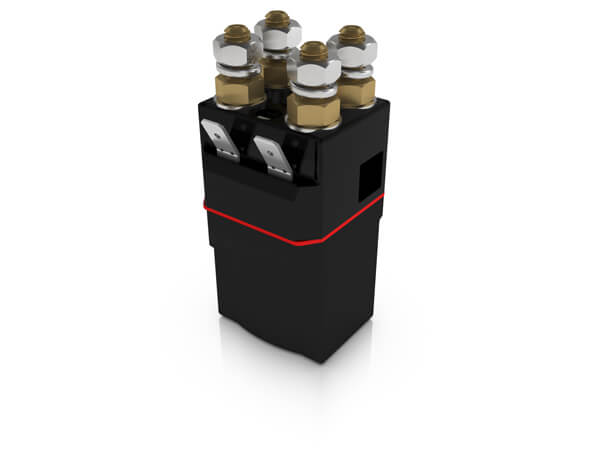

SW68P
NO - DP - ST - IP66
The SW68P is a miniature series double pole, free standing, compact contactor which is sealed to IP66. The SW68P is designed to fill the gap between 30 ampere relays and 100 ampere contactors. Devised for both interrupted and uninterrupted loads, it is suitable for switching Resistive, Capacitive and Inductive loads. Typical applications include switching small traction motors, hydraulic power packs and small electric winch motors.
The SW68P features double pole double breaking main contacts with silver alloy tips, which are weld resistant, hard wearing and have excellent conductivity. The SW68P incorporates an enclosed top cover and offers environmental protection to IP66. The SW68P has M6 stud main terminals and 6.3mm spade coil connections. It can be mounted via mounting brackets (supplied fitted). Mounting can be on the side or base of the contactor.
SW68P Technical Information
| Application | ||
| Thermal Current Rating | 80A | 80A |
| Intermittent Current Rating: | ||
| 30% Duty | 145A | 145A |
| 40% Duty | 125A | 125A |
| 50% Duty | 115A | 115A |
| 60% Duty | 105A | 105A |
| 70% Duty | 95A | 95A |
| Rated Fault Current Breaking Capacity (Icn) 5ms Time Constant: (In accordance with UL583*) | ||
| Blowouts | - | |
| No Blowouts | 400A at 48V D.C. | |
| Rated Fault Current Breaking Capacity (Icn) Resistive Load: (In accordance with UL508*) | ||
| Blowouts | - | |
| No Blowouts | 120A at 48V D.C. | |
| Maximum Recommended Contact Voltages | ||
| Blowouts | - | - |
| No Blowouts | 96V | 120V |
| Typical Voltage Drop per pole across New Contacts at 80A | 40mV | |
| Mechanical Durability | > 3,000,000 Cycles | |
| Coil Voltage Available (Us) (Rectifier board required for A.C.) | 6 - 130V | |
SW68P Features
| Component | Configurations |
|---|---|
| Coil Suppression |
DIODE
DIODE AND RESISTOR
BI-DIRECTIONAL DIODE
|
| Coil Terminations |
AMP TAGS
|
