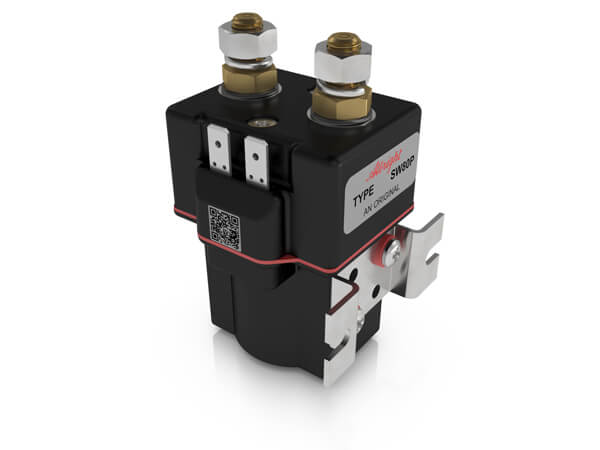

SW80P
NO - SP - ST - IP66
The SW80P is sealed to IP66 and has been designed for direct current loads in more arduous environments. Applications include winches and motors as used on electric vehicles such as industrial trucks. Developed for both interrupted and uninterrupted loads, the SW80P is suitable for switching Resistive, Capacitive and Inductive loads.
The SW80P features single pole double breaking main contacts with silver alloy tips, which are weld resistant, hard wearing and have excellent conductivity. The SW80P features an enclosed top cover and offers environmental protection to IP66. The SW80P has M8 stud main terminals and 6.3mm spade coil connections. Mounted using supplied brackets, mounting can be horizontal or vertical, when vertical the M8 contact studs should point upwards. If the requirement is for downwards orientation we can adjust the contactor to compensate for this.
SW80P Technical Information
| Application | ||
| Thermal Current Rating | 100A | 125A |
| Intermittent Current Rating: | ||
| 30% Duty | 185A | 230A |
| 40% Duty | 160A | 200A |
| 50% Duty | 140A | 175A |
| 60% Duty | 130A | 160A |
| 70% Duty | 120A | 150A |
| Rated Fault Current Breaking Capacity (Icn) 5ms Time Constant: (In accordance with UL583*) | ||
| Blowouts | 600A at 96V D.C. | |
| No Blowouts | 600A at 48V D.C. | |
| Rated Fault Current Breaking Capacity (Icn) Resistive Load: (In accordance with UL508*) | ||
| Blowouts | 190A at 96V D.C. | |
| No Blowouts | 190A at 60V D.C. | |
| Maximum Recommended Contact Voltages | ||
| Blowouts | 96V | 96V |
| No Blowouts | 48V | 60V |
| Typical Voltage Drop per pole across New Contacts at 100A | 40mV | |
| Mechanical Durability | > 5,000,000 Cycles | |
| Coil Voltage Available (Us) (Rectifier board required for A.C.) | 1 - 240V | |
SW80P Features
| Component | Configurations |
|---|---|
| Coil Suppression |
DIODE
DIODE AND RESISTOR
BI-DIRECTIONAL DIODE
|
| Coil Terminations |
AMP TAGS
|
