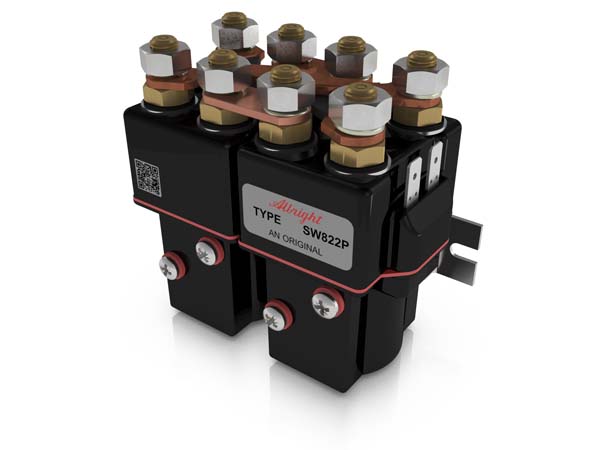

SW822P
MOTOR REVERSING - IP66
The SW822P has been designed for Motor Reversing applications with direct current loads, particularly motors as used on electric vehicles such as industrial trucks. Developed for both interrupted and uninterrupted loads, it is suitable for switching Resistive, Capacitive and Inductive loads.
The SW822P features double pole double breaking main contacts with silver alloy tips, which are weld resistant, hard wearing and have excellent conductivity. The SW822P features an enclosed top cover and offers environmental protection to IP66. The SW822P has M8 stud main terminals and 6.3mm spade coil connections. Mounted using supplied brackets, mounting can be horizontal or vertical, when vertical the M8 contact studs should point upwards. If the requirement is for downwards orientation we can adjust the contactor to compensate for this.
SW822P Technical Information
| Application | ||
| Thermal Current Rating | 100A | 100A |
| Intermittent Current Rating: | ||
| 30% Duty | 185A | 185A |
| 40% Duty | 160A | 160A |
| 50% Duty | 140A | 140A |
| 60% Duty | 130A | 130A |
| 70% Duty | 120A | 120A |
| Rated Fault Current Breaking Capacity (Icn) 5ms Time Constant: (In accordance with UL583*) | ||
| Blowouts | - | |
| No Blowouts | 800A at 80V D.C. | |
| Rated Fault Current Breaking Capacity (Icn) Resistive Load: (In accordance with UL508*) | ||
| Blowouts | - | |
| No Blowouts | 150A at 96V D.C. | |
| Maximum Recommended Contact Voltages | ||
| Blowouts | - | - |
| No Blowouts | 96V | 96V |
| Typical Voltage Drop per pole across New Contacts at 100A | 50mV | |
| Mechanical Durability | > 5,000,000 Cycles | |
| Coil Voltage Available (Us) (Rectifier board required for A.C.) | 6 - 240V | |
SW822P Features
| Component | Configurations |
|---|---|
| Coil Suppression |
DIODE
DIODE AND RESISTOR
BI-DIRECTIONAL DIODE
|
| Coil Terminations |
AMP TAGS
|
