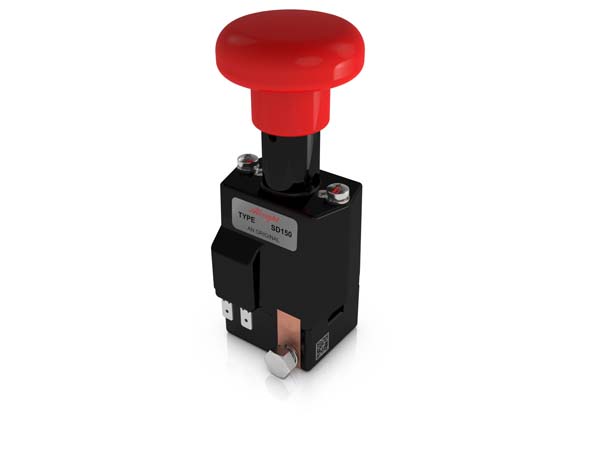

SD150
NO - SP - ST
The SD150 has been designed to provide a rapid means of disconnecting batteries or other power supplies in the event of serious electrical faults.
The SD150 combines the dual function of a manual disconnect and coil operated line contactor. The benefits of this design include compact size and reduced installation costs combined with an electrical capacity sufficient for small and medium size electric vehicles.
Whilst the switches are primarily intended for use with battery powered vehicles, they are also suitable for use with static power systems. All types are capable of safely rupturing full load battery currents in the event of an emergency.
SD150 Technical Information
| Application | ||
| Thermal Current Rating | 125A | 125A |
| Intermittent Current Rating: | ||
| 30% Duty | 230A | 230A |
| 40% Duty | 200A | 200A |
| 50% Duty | 175A | 175A |
| 60% Duty | 160A | 160A |
| 70% Duty | 150A | 150A |
| Rated Fault Current Breaking Capacity (Icn) 5ms Time Constant: (In accordance with UL583*) | ||
| Blowouts | 800A at 96V D.C. | |
| No Blowouts | 800A at 48V D.C. | |
| Rated Fault Current Breaking Capacity (Icn) Resistive Load: (In accordance with UL508*) | ||
| Blowouts | - | |
| No Blowouts | - | |
| Maximum Recommended Contact Voltages | ||
| Blowouts | - | - |
| No Blowouts | 48V | 96V |
| Typical Voltage Drop per pole across New Contacts at 100A | 40mV | |
| Mechanical Durability | > 3,000,000 Cycles | |
| Coil Voltage Available (Us) (Rectifier board required for A.C.) | 6 - 240V | |
SD150 Features
| Component | Configurations |
|---|---|
| Auxiliary |
STANDARD
|
| Coil Suppression |
DIODE
DIODE AND RESISTOR
BI-DIRECTIONAL DIODE
|
| Coil Terminations |
AMP TAGS
VACCUM IMPREGNATION
|
